SERVO DRIVE的產品有滑環，光纖旋轉接頭，步進電機，變速箱，直線執行器和行程齒輪箱等。
SERVO DRIVE滑環KS25系列技術參數
Voltage | 240Vac/240Vdc |
Contact material | Gold alloy |
Leads AWG (2A) | 26 |
Leads AWG (6A) | 20 |
Leads AWG (8A) | 16 |
Leads | tinning PTFE |
Dielectric strength | 500V AC@ 60Hz, 60s |
Insulation resistance | ≥500MQ/500VDC |
Dynamic contact resistance | < 100mQ @6Vdc 50mA 5RPM |
Operating Speed | 250rpm |
Temperafure | -20°C~+80°C(ET option -40°C ~+80°C) |
Housing material | Aluminium alloy |
Shaft material | Engineering plastic |
Protection degree | IP51 |
Estimated life | 10^7 revs |
Bearings | steel miniature precision ball bearings |
SERVO DRIVE滑環KS25系列介紹
KS 系列采用特殊技術，允許在刷子和環之間獲得多個接觸點，低摩擦扭矩，降低機械噪音和低磨損。
滑環可用于任何需要將電和/或電力信號傳輸?shù)介g歇或連續旋轉軸的系統。 由于環直徑小，KS 系列在刷子和環之間提供低圓周速度，以及減少動態不平衡，這意味著非常低的磨損。 此外，使用貴金屬（金到金合金）確保使用壽命長，減少電路之間的噪音和干擾，低摩擦扭矩。
The KS Series make use of a special technology allowing to get multiple contact points between brushes and ring, low friction torque, reduced mechanical noise and low wear.
Slip Rings can be used in any system requiring the transmission of electrical and/or power signals to an intermittently or continuously rotating shaft. Thanks to the small ring diameter, the KS Series grants low peripheral speed between brushes and rings, as well as reduced dynamic imbalance what means very low wear. Moreover, the use of noble metals (gold to gold alloy) assures long lasting using life, reduced noises and interferences between circuits, low friction torque.

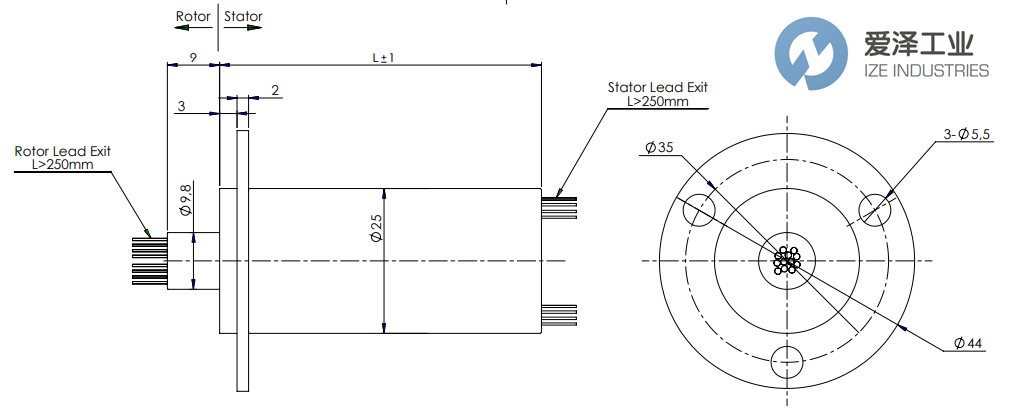

SERVO DRIVE滑環KS 25系列技術尺寸
SERVO DRIVE滑環KS 25系列技術尺寸
SERVO DRIVE滑環KS25系列其他常用型號：
SERVO DRIVE KS 25-30x2A
SERVO DRIVE KS 25-4x6A-18x2A
SERVO DRIVE KS 25-3x8A-1 5x2A
SERVO DRIVE KS 25-36x2A
SERVO DRIVE KS 25- 4x6A-24x2A
SERVO DRIVE KS 25-4x8A-16x2A
SERVO DRIVE KS 25-46x2A
SERVO DRIVE KS 25-56x2A
SERVO DRIVE KS 25-4x6A-44x2A
SERVO DRIVE KS 25-36x2A
SERVO DRIVE Slip Rings NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于SERVO DRIVE滑環KS25-4x6A-44x2A-AL的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for SERVO DRIVE products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.dljtgw.com.
SERVO DRIVE滑環KS25系列KS25-4x6A-44x2A-AL技術參數及尺寸
