REXROTH公司總部注冊于德國，公司于1795年成立，及后不斷致力在各制造技術領域犮展，近五十年來，在國際液壓市場一直處于世界優質的位置。REXROTH致力于為各類機械和系統設備提供安全、精準、高效以及高性價比的傳動與控制技術。公司融合全球的應用經驗，研發創新的產品，為行走機械、機械應用與工程、工廠自動化及可再生能源每一個細分市場的客戶量身定制系統解決方案及服務。
REXROTH的主要產品有：換向閥，止回閥，電磁閥，平衡閥，球閥，插裝閥，單向閥，溢流閥，行程閥，驅動閥，安全閥，閥組，閥塊，電磁閥線圈，流量計等等。
REXROTH直線襯套KBA-25-DD R067022540技術參數
|
Product attributes |
|
|
Linear guide type |
Linear bushing and shaft |
|
Filter for linear bushings and shafts |
Linear bushings |
|
Format of linear bushings |
– Closed |
|
Series |
Super A (with self-alignment feature) |
|
Maximum dynamic load capacity Cmax [N] |
4820 |
|
Max. acceleration amax [m/s2] |
150 |
|
Maximum permissible linear speed vmax [m/s] |
3 |
|
Footnote maximum permissible speed vmax |
Speeds of up to 5 m/s possible. |
|
Outer diameter d [mm] |
40 |
|
Mass m [kg] |
0.122 |
|
Permissible ambient temperature |
-10 °C ... +80 °C |
|
Friction coefficient μ |
0,001 ... 0,0025 |
|
Footnote friction coefficient μ |
Friction coefficients of unsealed Linear Bushings when lubricated with oil. |
|
Friction coefficient μ min. |
0.001 |
|
Rows of balls |
6 |
|
Permissible ambient temperature (max) [°C] |
<prefix>+</prefix>80<suffix></suffix> |
|
Permissible ambient temperature (min) [°C] |
<prefix>-</prefix>10<suffix></suffix> |
|
Footnote minimum dynamic load capacity Cmin |
The dynamic load capacities are based on a total travel of 100,000 m. |
|
Footnote maximum dynamic load capacity Cmax |
The dynamic load capacities are based on a total travel of 100,000 m. |
|
Footnote friction force FR |
One wiper seal: Multiply by a factor of 0.5. |
|
Friction force [N] |
2 |
|
Breakaway force [N] |
4.5 |
|
Friction coefficient μ max. |
0.0025 |
|
Footnote breakaway force |
One wiper seal: Multiply by a factor of 0.5. |
|
Minimum static load capacity C0min [N] |
2180 |
|
Maximum static load capacity C0max [N] |
2790 |
|
Minimum dynamic load capacity Cmin [N] |
3950 |
|
Radial clearance shaft h6/bore M7 |
<prefix>+</prefix>18<suffix></suffix>,<prefix>-</prefix>14<suffix></suffix> |
|
Footnote minimum static load capacity C0min |
The load ratings are based on a total travel of 100, 00 m. |
|
Footnote maximum static load capacity C0max |
The load ratings are based on a total travel of 100, 00 m. |
|
Friction force FR footnote 2 |
Frictional drags generated by Linear Bushings with integrated wiper seals on two sides when not under radial load. |
|
Radial clearance shaft h6/bore K7 |
<prefix>+</prefix>25<suffix></suffix>,<prefix>-</prefix>7<suffix></suffix> |
|
Radial clearance shaft/bore h6/H7 |
<prefix>+</prefix>43<suffix></suffix>,<prefix>+</prefix>11<suffix></suffix> |
|
Weight [kg] |
0.131 |
REXROTH直線襯套KBA-25-DD R067022540產品介紹
Super A（帶自動調心功能）
閉合
軸直徑 d = 25
帶兩個密封件
? 滿足高要求的低成本直線軸承
? 鋼制軸承板帶有機加工的滾珠導向槽和優化的滾珠導入倒角，可實現出色的平穩運行和較長的使用壽命
? 補償高達 30' 的軸偏轉和未對準
? 高行駛速度 (5 m/s)
? 無初始潤滑
? 集成防塵密封、外部密封或無防塵密封
? 由 PA 或 POM 制成的滾珠固定器和外套筒
? 滾動軸承鋼制成的球
Super A (with self-alignment feature)
Closed
Shaft diameter d = 25
With two seals
? Low-cost linear bushing for high requirements
? Steel bearing plates with machined ball guide grooves and optimized ball lead-in chamfers for outstandingly smooth travel and a long service life
? Compensates for shaft deflection and misalignment up to 30'
? High travel speed (5 m/s)
? No initial lubrication
? Integrated wiper seals, external seals or no wiper seals
? Ball retainer and outer sleeve made of PA or POM
? Balls made of rolling bearing steel

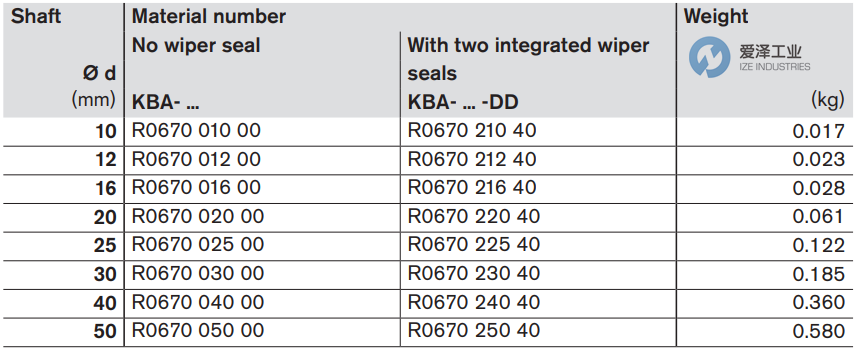

REXROTH直線襯套R(shí)0670系列選型
REXROTH直線襯套R(shí)0670系列其他常用型號：
REXROTH KBA-10-DD R067021040
REXROTH KBA-12-DD R067021240
REXROTH KBA-16-DD R067021640
REXROTH KBA-20-DD R067022040
REXROTH KBA-25-DD R067022540
REXROTH KBA-30-DD R067023040
REXROTH KBA-40-DD R067024040
REXROTH KBA-50-DD R067025040
REXROTH LINEAR BUSHING NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于REXROTH直線襯套KBA-25-DD R067022540的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for REXROTH products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.dljtgw.com.
