DOMEL電機介紹及選型

Domel 真空電機有多個系列，可適配很多干式或濕式真空應用。 它們采用優質材料制成，可以在高速和高負載下運行。 它們所表現出的高能效是計算機模擬氣流、磁通量以及用于優化空氣動力學、聲學、振動動力學、電磁特性和 EMC 干擾的實驗室測試的結果。 所有真空電機都經過徹底的測試，以確定其共振頻率及其對結構完整性的影響。

除了結構緊湊之外，Domel 電機的另一個重要特點是噪音水平非常低。 這是通過降低甚至在某些情況下完全消除空氣動力學和結構噪聲源來優化的。 主要是通過使用設計流路幾何形狀實現無紊流流動，從而實現低噪音水平。 確保低噪音的另一個重要作用是各個部件和組件的適當結構剛度。 安裝在特別靜音的設備中的電機還配備了聲屏障和吸音材料。

There are several series of Domel vacuum motors, allowing for a perfect fit to any dry or wet vacuum application. Built from high quality materials, they can operate at high speeds and high loads. The high energy efficiency they display is the product of computer simulations of air flow, optimal magnetic flux and lab tests used to optimise the aerodynamics, acoustics, vibration dynamics, electromagnetic characteristics and EMC interference. All vacuum motors are subjected to thorough testing to determine their resonant frequencies and the effect they have on structural integrity.

Another important feature of our motors, in addition to their compact build, is their very low noise level. This is optimised by lowering and, in some cases, completely eliminating aerodynamic and structural sources of noise. Primarily, the low noise level is achieved by using ideal geometry of the flow path which enables turbulence-free flow. Another important role in ensuring low noise is played by the suitable structural rigidity of individual components and assemblies. The motors that are to be installed into especially silent appliances are additionally equipped with sound barriers and soundabsorbing materials.

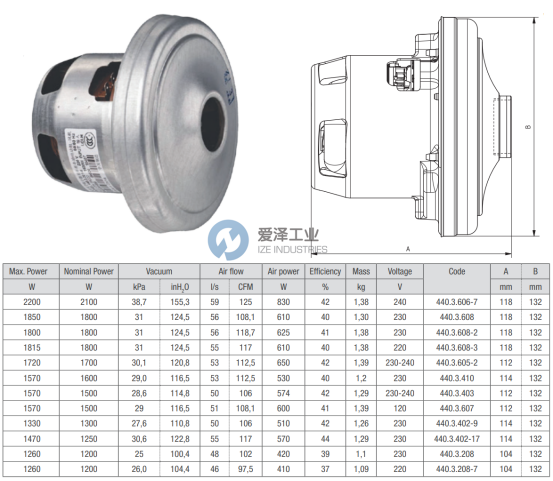

DOMEL真空電機440系列介紹及選型

440 系列真空吸塵器電機采用金屬底盤、久經考驗的材料、集成的長壽命電刷和 130 毫米的外徑，是同類產品中更堅固、更可靠的電機之一。 它們的設計允許高達 2100 W 的各種功率配置。

Series 440 vacuum cleaner motors, with their metal chassis, tried and proven materials, integrated extended life-span brushes and an external diameter of 130 mm, are among the most robust and reliable in their class. Their design allows various power configurations of up to 2100 W.

DOMEL真空電機441系列介紹及選型

441 系列真空吸塵器電機是所有能源標簽應用以及具有更高功率要求的應用的選擇。 它們的設計允許功率配置從 300 W 到 1200 W，電壓從 12 V 到 240 V。

Series 441 vacuum cleaner motors are the optimal choice for all energy label applications as well as those with higher power requirements. Their design allows power configurations from 300 W to 1200 W and voltages from 12 V to 240 V.

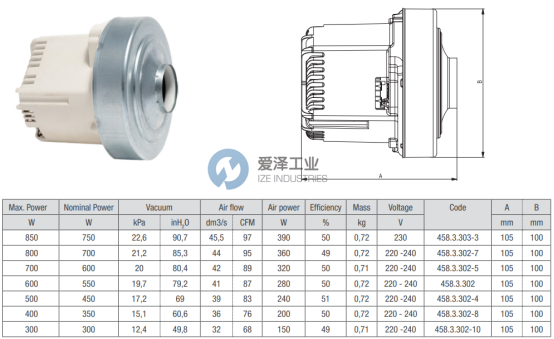

DOMEL真空電機458系列介紹及選型

458 系列真空吸塵器電機效率較高，旨在滿足更多能源標簽要求。 它們的功率范圍為 300 W 至 800 W，電壓范圍為 12 V 至 240 V，采用高度自動化的生產線制造?？刂圃O(shè)備在裝配過程中和結束時都會檢查每個電機。 該電機效率高、尺寸緊湊、重量功率比低且質量高，使其成為各種真空和鼓風機應用的優質選擇。

Series 458 vacuum cleaner motors are highly efficient and designed to cover all energy label requirements. Covering power from 300 W to 800 W and voltages from 12 V to 240 V, they are manufactured on highly automated production lines. Advanced control devices inspect every motor both during and at the end of the assembly process. The motor′s high efficiency, compact size, low weight-to-power ratio and high quality make it the best choice for a variety of vacuum and blower applications.

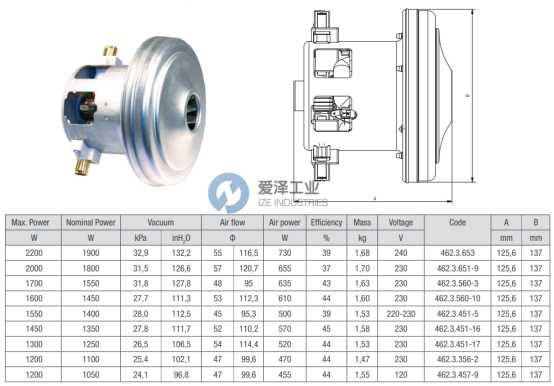

DOMEL真空電機462系列介紹及選型

適用于干燥應用的 462 系列真空吸塵器電機安裝在金屬底盤中。 憑借其堅固的結構，它們可用于廣泛的任務。 機箱外徑135mm，電壓100V-240V，最大功率2200W，電刷可更換，延長使用壽命，經濟實惠。這些電機的特點是其可靠性和經過考驗的材料。

Series 462 vacuum cleaner motors for dry applications are mounted in a metal chassis. With their robust construction, they can be used for a broad spectrum of tasks. The external diameter of the chassis is 135 mm, with voltages from 100 V to 240 V and a maximum power of 2200 W. Their brushes can be replaced, enabling a highly affordable extension of their life-span. These motors are characterised by their reliability and the tried and proven materials.

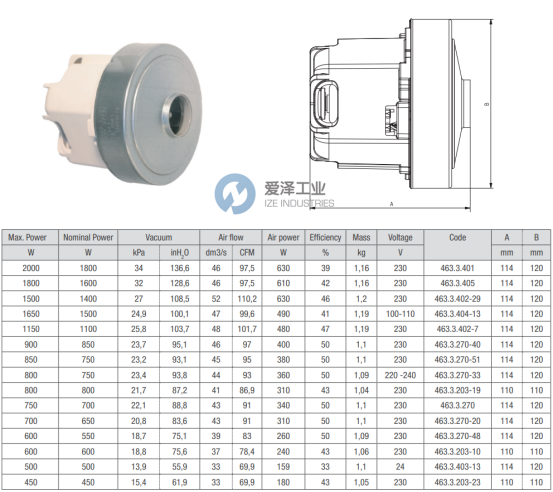

DOMEL真空電機463系列介紹及選型

463系列吸塵器電機功率范圍廣泛，從450W到2200W，電壓從12V到240V。463系列電機的直徑為110mm到120mm，主要用于各種吸塵器和鼓風機。 它們?cè)诟叨茸詣?dòng)化的生產線上制造，并經過 100% 在線質量測試。 所有 463 系列電機均安裝在 BMC 熱固性塑料底盤中，進一步提高了其功率重量比。 這使得 463 系列電機具有高的功率重量比，高達 665 W/kg。

Series 463 vacuum cleaner motors cover a broad spectrum of power, ranging from 450 W to 2200 W and voltages from 12 V to 240 V. Series 463 motors are available in diameters of 110 mm to 120 mm, and are mostly used in various vacuuming appliances and blowers. They are manufactured on highly automated production lines with 100% inline quality testing. All series 463 motors are housed in a BMC duroplast chassis, further increasing their power-to-weight ratio. This makes the series 463 motors state-of-the-art, allowing them to have the highest power-to-weight ratio, up to 665 W/kg.

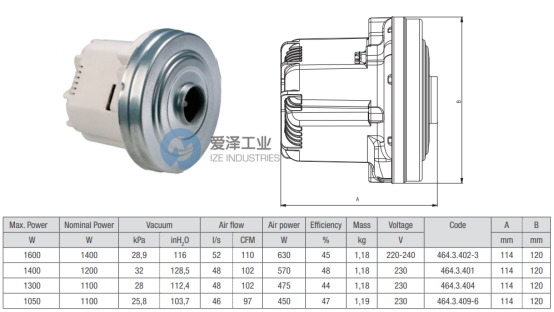

DOMEL真空電機464系列介紹及選型

464 系列真空吸塵器電機安裝在 BMC 底盤中，與同等金屬板相比，該底盤更輕且更容易適應周圍的硬件。 此外，它們還具有更高的質量和能源效率。464系列電機的額定功率高達 1600 W，提供各種電壓，外徑為 120 mm。

Series 464 vacuum cleaner motors are installed into a BMC chassis, which is lighter and easier to adapt to the surrounding hardware than a sheet metal equivalent. In addition, they also have exceptionally high quality and energy efficiency. Series 464 motors have a power rating of up to 1600 W, available in various voltages, and have an external diameter of 120 mm.

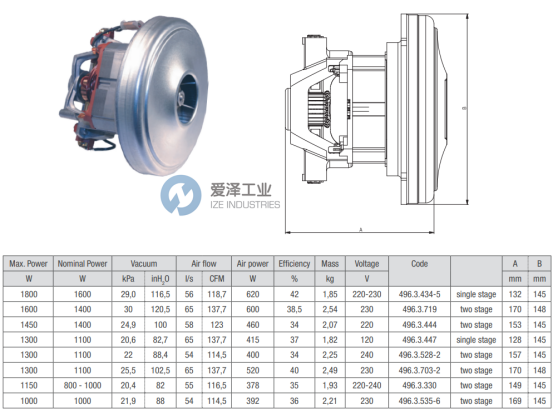

DOMEL真空電機496系列介紹及選型

496 系列真空吸塵器電機提供一級或兩級配置，額定功率高達 2500 W。其骨架結構直徑為 145 毫米，是較為堅固的結構之一。 所有電機均配備易于更換的電刷，從而延長其使用壽命。 根據客戶的要求，它們可以適應 12 V 至 240 V 的工作電壓。

Series 496 vacuum cleaner motors are available in one-or twostage configuration, with power ratings of up to 2500 W. Their skeletal construction with a diameter of 145 mm is among the most robust. All motors are equipped with easily replaceable brushes, allowing their lifespan to be extended. Depending on the client’s requirements, they can be adapted to an operating voltage between 12 V and 240 V.

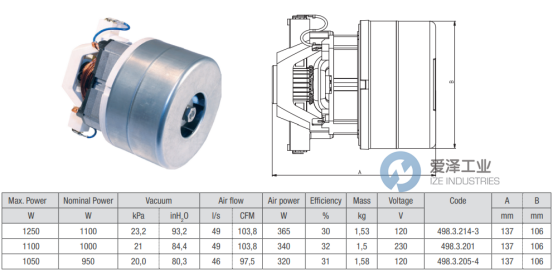

DOMEL真空電機498系列介紹及選型

498 系列真空吸塵器電機設計有同時驅動皮帶驅動刷輥的選項。 其骨架結構直徑為 106 毫米，并提供兩級配置。 它們可以以較低的轉速運行，功率高達 1200 W，常用于立式真空吸塵器和低功率電器。

Series 498 vacuum cleaner motors are designed with an option to simultaneously drive a belt driven brush roll. Their skeletal construction has a diameter of 106 mm, and are available in a two-stage configuration. They can operate at lower RPMs and with a power of up to 1200 W, and are most commonly used in upright vacuum cleaners and low-power appliances.

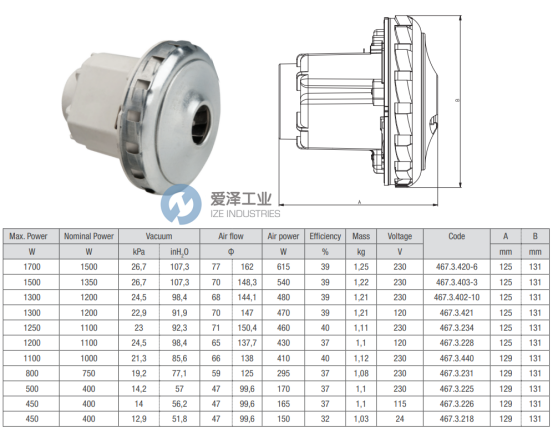

DOMEL真空電機467系列介紹及選型

467 系列真空吸塵器電機的效率進一步證明了其出色的功率重量比。 467 系列真空吸塵器電機可以安裝到底盤中，以便輕松更換電刷，進一步延長其使用壽命。 還可以安裝分離器和水過濾器。 這些電機的主要優點是尺寸緊湊、占空比高和吸塵功率高，可與多級電機相媲美。 467 系列電機用于各種吸塵應用，功率高達 1900 W，電壓范圍為 12 V 至 240 V，雙重絕緣，無需接地。

The efficiency of series 467 vacuum cleaner motors is further proof of their excellent power to weight ratio. Series 467 vacuum cleaner motors can be mounted into a chassis that allows for an easy brush replacement, extending their life-span further. Separators and water filters can also be installed. The main advantages of these motors are their compact size, high duty cycle and high vacuuming power, comparable with that of a multi-stage motor. Series 467 motors are used in various vacuuming applications with a power of up to 1900 W, available in voltages from 12 V to 240 V, are double insulated and do not require grounding provision.

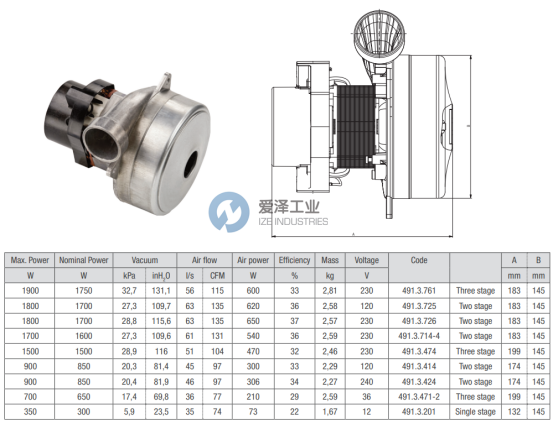

DOMEL真空電機491系列介紹及選型

491 系列濕式真空吸塵器電機在設計時考慮到了環保和能源效率。 除了堅固的骨骼結構外，它們還產生非常低的噪音水平。 憑借其鋁制結構和額外的軸承保護，它們能夠進行重負荷操作。 由于具有極高的工作負壓或正壓，491 系列電機的一級、二級或三級配置可用于各種電器，特別是中央吸塵器、商業/工業應用和鼓風機。

Series 491 wet vacuum cleaner motors are designed with eco-friendliness and energy efficiency in mind. In addition to their robust skeletal structure, they also produce very low noise levels. With their aluminium construction and additional bearing protection, they are capable of heavy duty operation. Due to their extremely high operating negative or positive pressure, series 491 motors in one, two or three-stage configuration can be used in various appliances, particularly central vacuum cleaners, commercial/industrial applications and blowers.

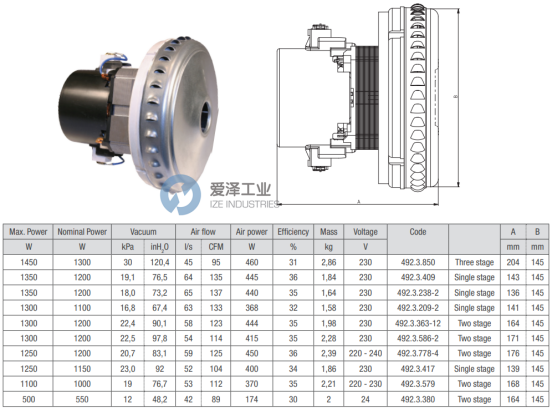

DOMEL真空電機492系列介紹及選型

492 系列真空吸塵器電機具有一級、二級或三級配置。 它們采用堅固的金屬或 BMC 骨架底盤。 與 467 系列電機相比，492 系列電機的使用轉速較低。 它們的最大功率高達 2000 W，電壓范圍為 12 V 至 240 V。所有用于干式和濕式應用的真空電機均可采用單絕緣或雙絕緣，具體取決于客戶的要求。 如果使用雙重絕緣，則無需接地。

Series 492 vacuum cleaner motors come in one, two or three-stage configuration. They come in a robust skeletal chassis from metal or BMC. In comparison to series 467 motors, series 492 motors are used at lower RPMs. Their maximum power is up to 2000 W, and they are available in voltages from 12 V to 240 V. All vacuum motors for dry and wet applications can be built with single or double insulation, depending on the client’s requirements. If double insulation is used, grounding provision is not required.

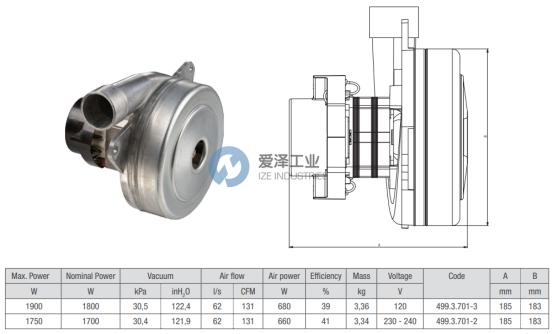

DOMEL真空電機499系列介紹及選型

499 系列電機是較大、較堅固的Domel干濕真空電機。它們的骨骼結構直徑為 183 毫米。 這些電機在其性能和尺寸類別中是很高效的。 其鋁制結構和額外的軸承保護進一步提高了其生態友好性和能源效率，可在惡劣條件下可靠、安靜地運行。由于具有較高的負壓或正壓，499 系列電機非常適合中央吸塵系統。

Series 499 motors are the biggest and most robust Domel wet and dry vacuum motors. Their skeletal construction has a diameter of 183 mm. These motors are the most efficient in their performance and size category. Their eco-friendliness and energy efficiency is further expanded by their aluminium structure with additional bearing protection for reliable and silent operation in severe conditions. Due to their extremely high negative or positive pressure, series 499 motors are very suitable for central vacuuming systems.

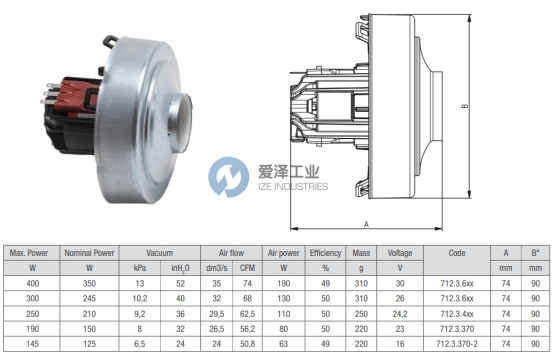

DOMEL真空電機712系列介紹及選型

電子換向系列 712 電機設計用于電池驅動應用，電壓范圍為 12 V 至 48 V。除了具有高效率和極低的功率重量比外，所使用的 EC 技術還能夠?qū)崿F(xiàn)出色的性能。工作壽命長。

The electronically commutated series 712 motors are designed to be used in battery driven applications, available in voltages between 12 V and 48 V. In addition to its high efficiencies and very low power-to-weight ratio, the EC technology used also enables an extremely long operating life.
