TPL VISION成立于2005年，設計和制造LED照明產品，專用于使用機器視覺相機的工業過程。產品系列專注于機器人應用，包括分揀，拾取和放置，質量控制，代碼讀取等。
主要經營產品有：
TPL VISION條形燈
TPL VISION漫反射背光
TPL VISION聚光燈
TPL VISION大功率環
TPL VISION頂燈
TPL VISION低角度燈
TPL VISION食品吧臺燈
TPL VISION紫外線燈。
TPL環形燈HPRING系列技術參數
Technical specifications | |
Electronics | |
Power supply | 24 VDC ±10% |
Functioning mode | Continuous or strobe according to wiring |
Maximum rising time | 1.5ms |
Maximum falling time | 1ms |
Wiring | M8 3 poles male connector |
Max. Consumption | 15 W |
Optics | |
Colour | White, Red, Green, Blue, Infrared (UV 405 available) |
Number of Leds | 12 |
Standard lens | ± 10° |
Mechanics | |
Dimensions | ? Int : 58 mm ‐ ? Ext : 112 mm |
Width | 28 mm |
Weight (g) | 400 |
Materials | Black anodized aluminum |
Diffuser | Transparent diffuser |
Fixing | 4 M3 screws |
Environment | |
Operating temperature | 0 - 40°C |
Storage temperature | 0 - 60°C |
IP protection | IP 40 |
Labels | RoHS-CE-WEEE |
TPL環形燈HPRING系列介紹
HPRING 是一個實心環，配備 12 個高功率 LED，對于圓形區域的定向照明非常有用。在 TPL Vision 的產品系列中，它絕對是較強大的照明之一。在1m的距離處，HPRING的標準版本可以照亮550mm的圓形區域。
其大內徑使其與更大的相機物鏡兼容。HPRING揭示了其在機器人領域（例如，在包裝過程中定位產品）以及質量控制領域的所有潛力。
12 個高功率 LED
連續或頻閃模式
適合大型相機
The HPRING is a solid ring, equipped with 12 high powerful LEDs, very useful for the directive lighting of a circular area. Among TPL Vision’s products range, it definitely appears to be one of the most powerful lightings. At a distance of 1m, the standard version of the HPRING can light up a circular area of 550mm.
Its large internal diameter make it compatible with the largest camera’s objectives. The HPRING reveals all its potential in the field of robotics (for example, to locate the products during the packaging process) and also in the field of quality control.
12 HIGH POWERFUL LEDS
CONTINUOUS OR STROBE MODE
FITS THE BIGGEST CAMERAS

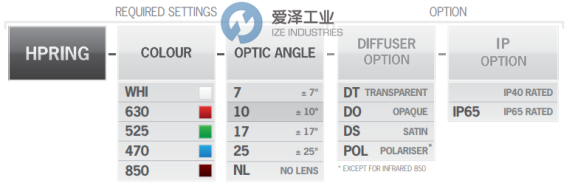

TPL環形燈HPRING系列選型
TPL環形燈HPRING系列其他常用型號：
TPL HPRING-WH-10-D0
TPL HPRING-630-1 7-DT-IP65
TPL HPRING-470-25-POL
TPL HPRING-630-17-DO
TPL LIGHTING NEW + ORIGINAL+ ONE YEAR WARRANTY
愛澤工業成立于2010年，定位于向制造工業提供高端制造技術和設備。代理經營世界優質的電氣自動化、機械與傳動、流體控制、儀器儀表、工具等產品。作為電氣，液壓以及氣動解決方案的合作伙伴，我們利用我們的全球協作團隊，為客戶提供先進解決方案，市場知識以及相關增值服務來幫助優化客戶的工作效率，提高可靠性和安全性，致力于成為工業產品和解決方案的優質渠道。
如果有任何關于TPL環形燈HPRING-630-17-DO的疑問，請隨時與我們溝通（021-31006702）。我們將盡全力解決您的問題。
If you have any question for TPL products, please feel free to dial 0086-21-3100 6702/ send request email to sales@ize-industries.com / browse our website:www.dljtgw.com.
TPL環形燈HPRING系列HPRING-630-17-DO技術參數及選型
