愛澤工業2018年8月部分到貨產品專題及庫存

——ABB電機篇

如下為我司愛澤工業IZE_Industries本月部分到貨ABB電機相關產品，歡迎來電索取樣本資料和產品信息。

ABB 電機QAEJ80M4B,0.75KW B5 IP56愛澤工業izeindustries

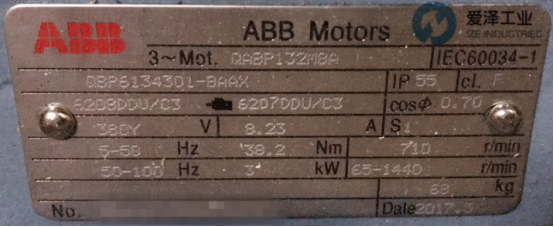

愛澤工業ABB電機到貨銘牌預覽：

愛澤工業(IZE_INDUSTRIES ABB)特價經銷、常用ABB電機型號：

M2JA225M4A-WV15

M2JA90L4A

M2JA90S2A-W

M2JA315M4A

M3BP225SMA4 3GBP222001-ADA

M3BP225-2PIM1001 380V 45kw 2961r/min

M3BP160LA2IM1001 380V 11KW 2938r/min

M3BP355MLB 3GDP354420-ADG 250KW

M3BP90LB4 B3 1.5KW

M3BP80MC2 B5 0.75KW

M3BP132SME2 B3 7.5KW

M3BP315SMB4132KW-4P

M3BP355SMB8/160KW(400V)

M3BP315LKC4IMB3/IM1001

M3BP355SMA4IMV6/ZM1031

M3BP280SMB4 90KW-4P B3

M3BP180MLB4 22KW-4P B3

M3BP132SMC4 7.5KW-4P B3

M3BP100LC4 2.2KW-4P B3

M3BP280S5MB21MB3/1M1001

M3BP355MLB6IMB3/IM1001

M3BP160MLB63GBP163032-BDG

QABPEJ132M4A/5.5KW/V1

QABP315L4B,200kw

QABP315L2B 200KW

QABP160L6A 11kw

QABP160L6A 11kw

QABP315S8A-B3 55KW

QABP160M6A 7.5KW

QABP315S8A-B3

QABPEJ160L4A 15KW

QABP160L6A 11kw

QABP90L4A-380V/1.5KW

QABP132S4A 5.5KW

QABP132M4A 7.5KW 1

QABP90S4A 1.1kW 380V 1425r/min

QABP90L4A 1.5kW 380V 1425r/min

MQABPEJ132M6A\4KW

QABP132S4A 5.5KW

QABP250M8A 25KW

QABP315L6B\132KW\380V\

QABP250M4A\55KW\

QABPEJ160L4A\15KW

QABP315S8A-B3 55KW

M2QA200L4B

M2QA90S2A

M2QA132M8/4A-W

M2QA132M4A 7.5KW

M2QA132M6B 5.5KW

M2QA200L6A 18.5KW

M2QA112M6/4B

M2QA132M8/4B

M2QA90S6A, 0.75KW

M2QA30MB4B 0.75KW

M2QA280S4A

M2QA160L8/4A B57/11KW

M2QA90L4A\1.5KW

M2QA80M6B\0.55KW

M2QA280M4A

M2QA280S2A

M2QA80M4A

M2QA100L2A 3KW

M2QA112M2A

M2QA180M4A

M2QA160L4A

M2QA90L6A 920R/MIN

M2QA100L4A 2.2KW

M2QA280S4A

M2QA315S4A\110KW

M2QA280S4AB5\75KW

M2QA71M4B 0.37KW

M2QA138352-SDA

M2QA系列標準三相異步電動機

M2QA系列標準三相異步電動機是M2000系列產品中的基本系列，符合歐洲共同體II級效率標準，高效可靠、節能環保。該系列電機引進全套歐洲生產工藝，噪音低、壽命長，適用于各種惡劣環境，被廣泛應用于各行各業。

M2QA Series IEC Low-voltage Three-phaseInduction Motors

As the standard series of ABB M2000 family,the M2QA series IEC low-voltage three-phaseinduction motors are in conformity with efficiencyclass 2 of CEMEP-EU. High efficiency assuresenergy savings, and high reliability reduces thefaulty time and the maintenance costs. Themotors are designed and manufactured accordingto European technology, including features suchas low noise level and long life cycle. M2QA motorsare suitable for various environments and operatein a wide range of different industrial areas.

M2QA優點

·高效節能，降低營運成本，讓最終用戶在最短時間內收回采購成本。

·可靠性高，保障設備連續平穩運行；故障率低，降低維護成本。

·采用進口軸承，先進工藝，使電機壽命更長。

·柔性設計，可按客戶要求加裝多種附件

Outstanding Features of M2QA Motors

·High efficiency and energy saving in combination with high reliability reduces the operation costs.

·Advanced production technology assures accurate products.

·Motors are equipped with imported bearings.

·Flexible design with choice of additional accessoriesfulfills most customers’ requirements.

產品特點

1）電機參照國際標準設計制造

·IEC60034和IEC60072國際電工委員會

·BS4999英國標準

·AS1359 - 2澳大利亞標準

·DIN42673德國標準

2）電機符合下列標準

·GB755

·GB10069

·Q/JBQS36

Product Features

1) These motors are built to comply with currentInternational Standards.

·International Electro-technical Commission - IEC60034and IEC60072

·British Standard - BS4999

·Australian Standard - AS1359 - 2

·German Standard - DIN42673

2) These motors are built to comply with current NationalStandards.

·GB755

·GB10069

·Q/JBQS36

標準

高效率

1.1 - 90 kW，2極和4極，24小時運轉，M2QA系列達到CEMEP-EU的II級效率標準，具有較好的節能效果。

軸承具有較高承載能力

配置深溝球軸承，大大延長電動機的工作壽命。

71 -225鑄鐵電動機配有免潤滑軸承

50 -355電動機標準配置裝有注排油裝置

寬電壓設計

高達690V且可應用于50Hz和60Hz電網。

低噪音水平

M2QA系列通過改善電磁和電氣設計、冷卻系統及結構優化和高技術，使電動機噪音降至最低程度。

可靠的繞組

繞組采用最新技術的絕緣材料，可達至F級絕緣和B級溫升（80K），確保繞組的使用壽命長。

防腐蝕能力強

電動機防腐蝕能力強，在惡劣的條件下仍可正常運行。

額外的繞組保護

可按客戶要求加裝PTC熱敏電阻、熱敏開關和防冷凝裝置。

Standards

High efficiency

1.1 -90 kW, 2P and 4P, in S1 duty, M2QA motors are among the class 2 of CEMEPEUstandard, saving energy and operating costs.

Bearings with high load capacity

All motors are provided with deep-groove ball bearings, the lifetime is extended.Cast iron motors in sizes 71 - 225 are greased for life, and those in sizes 250 - 355have a regreasing device as a standard.

Voltage ranges of extra versatility

A wide range of voltages can be up to max. 690 V, for 50 Hz and 60 Hz is available.

Low noise level

The M2QA range has been designed to minimize motors noise levels by means ofimproving magnetic and electrical design, ventilating condition, structural assemblingsize and technology.

Reliable windings

To ensure long lifetime, the windings are made of the latest available materials inclass F protection and temperature rise limited to class B (80K) in standard motors.

Strong corrosion protection

The motors are made to withstand aggressive environment as standard and theyare designed for long lifetime. For motors with regreasable elements, they havestrong and effective protection against corrosion.

Additional winding protection

PTC thermistors, thermal switches and anticondensation on request

機械設計

全封閉自扇冷設計，IP55防護等級

重負載設計，同時采用強抗腐蝕鑄鐵材料，使M2QA系列電動機可調節各種環境。電動機的機械結構極其堅固，標準設計采用變頻驅動器，額外節能。

靈活的進線方式

接線盒可安裝在所有規格的電動機頂部、右側或左側，易于改裝。

·71 - 132電動機接線盒可旋轉4×90°

·160 - 355電動機接線盒可旋轉2×180°，所有規格的電動機都易于改裝。

強大的改裝能力

電動機針對不同環境及應用有多種配置可選，如更高的防護等級、絕緣等級、重新潤滑裝置、防塵保護、密封圈、防護罩等等。

Mechanical Design

Totally enclosed fan cooled IP55

Heavy duty design, manufactured from extra corrosion resistant cast iron materialsto be used in all kind of environment. The motor is mechanically very strong androbust and as standard designed for additional energy saving through frequencyconverter drives.

Flexible cable entry direction

Terminal boxes are mounted on the top of the motors, right or left. Terminalboxes of motor size 71 - 132 can rotate 4×90°, and those of 160 - 355 can rotate2×180°. All are easy to refit.

Powerful refit available

The motors satisfy the requirements of a wide range of environments and applications,such as improving protection, insulation level, regreasing facilities, dustproof,sealing rings, protective roof are available.

愛澤工業(IZE INDUSTRIES)特價經銷、常用ABB電機M2QA系列型號：

ABB電機M2QA71M2A

ABB電機M2QA71M2B

ABB電機M2QA80M2A

ABB電機M2QA80M2B

ABB電機M2QA90S2A

ABB電機M2QA90L2A

ABB電機M2QA100L2A

ABB電機M2QA112M2A

ABB電機M2QA132S2A

ABB電機M2QA132S2B

ABB電機M2QA160M2A

ABB電機M2QA160M2B

ABB電機M2QA160L2A

ABB電機M2QA180M2A

ABB電機M2QA200L2A

ABB電機M2QA200L2B

ABB電機M2QA225M2A

ABB電機M2QA250M2A

ABB電機M2QA280S2A

ABB電機M2QA280M2A

ABB電機M2QA315S2A

ABB電機M2QA315M2A

ABB電機M2QA315L2A

ABB電機M2QA315L2B

ABB電機M2QA355M2A

ABB電機M2QA355L2A

ABB電機M2QA71M4A

ABB電機M2QA71M4B

ABB電機M2QA80M4A

ABB電機M2QA80M4B

ABB電機M2QA90S4A

ABB電機M2QA90L4A

ABB電機M2QA100L4A

ABB電機M2QA100L4B

ABB電機M2QA112M4A

ABB電機M2QA132S4A

ABB電機M2QA132M4A

ABB電機M2QA160M4A

ABB電機M2QA160L4A

ABB電機M2QA180M4A

ABB電機M2QA180L4A

ABB電機M2QA200L4A

ABB電機M2QA225S4A

ABB電機M2QA225M4A

ABB電機M2QA250M4A

ABB電機M2QA280S4A

ABB電機M2QA280M4A

ABB電機M2QA315S4A

ABB電機M2QA315M4A

ABB電機M2QA315L4A

ABB電機M2QA315L4B

ABB電機M2QA355M4A

ABB電機M2QA355L4A

我司ABB到貨圖集:

ABB 電機QAEJ80M4B愛澤工業izeindustries ABB 電機M3JP80MAV1.0愛澤工業izeindustries

ABB電機 MQAEJ80M4B 愛澤工業 izeindustries  ABB 電機QABP132M8A 愛澤工業ize_industries

ABB風扇用于配M2BA132S4愛澤工業 izeindustries

以上為本月部分到貨ABB電機相關產品，愛澤工業專業提供ABB全系列產品。

如果您有任何關于產品的相關技術咨詢或者需要產品的相關技術資料與文檔，請隨時聯系愛澤工業（86-21-3100 6702），或者訪問網站www.dljtgw.com,我們將盡全力解決您的問題。

If you have any question for SEW or ABB motors, please feel free to dial 0086-21-3100 6702 or browse our website: www.dljtgw.com.
