愛澤工業2018年9月部分到貨產品專題及庫存

——SEW電機篇

如下為我司愛澤工業IZE_Industries本月部分到貨SEW電機相關產品，歡迎來電索取樣本資料和產品信息。

愛澤工業SEW電機到貨銘牌預覽：

愛澤工業(IZE_INDUSTRIES )特價經銷、常用SEW減速機型號：

FA87DRE132MC4BE11HF

K87R57DRS71M4

SAF47DR63M6-0.12KW-M3B

SHF67R37DR63S4-0.12KW-M2B

SAF47R17DR63M4-BR-0.18KW-M4A

FA37BR17DR63S4-BR-0.12KW-M3

SA77-T-DT90L4

SA77-T-D36-DV100L4

SAF57DT80K4-16rpm-0.55KW

R87DRE90M4BE2HR/TF/XV1A

FV87/GDRE132S4BE5HR/TF

RF27DRN90L4/C

RF47DRS71S4/C

RF67R37DRS71S4/C

RF57DRN112M4/C

RF97R57DRN80M4/C

R107DRN160 L4/V

R77DRE100M4 /TF

R87R57DRS71S4/TH

SEW電機R系列

SEW-EURODRIVE的六個單級和十四個兩級和三級尺寸的螺旋減速電機確保了功率和空間要求之間的最佳比例。

In six single-stage and fourteen two-stage and three-stage sizes, the helical gearmotors by SEW-EURODRIVE ensure an optimum ratio between power and space requirements.

SEW電機R系列技術資料

R系列（兩級和三級）

SEW全系列的斜齒輪減速電機為每個驅動任務提供最佳尺寸和動力解決方案。對于重量問題的應用，SEW的多級齒輪箱提供了一些特別的東西：由于采用壓鑄鋁設計，R07，R17和R27型號是三種特別高效的輕量級裝置-非常適合用作衛星驅動裝置和用于燈具機器結構。減速齒輪斜齒輪減速機也可用于特別精確的要求。

減速比減速比[i]：3.21 - 289.74

多級齒輪箱減速比[i]：90 - 27001

輸出扭矩[Nm]([in-lb])：50 - 18000 (440 to 159300)

電機功率范圍[kW] ([hp])：0.12 - 90 (0.16 to 120)

R series (two-stage and three-stage)

Our complete range of helical gear motors provides the optimum size and power solution for every drive task. And for applications where weight is an issue, our multi-stage gear units provide something special: Thanks to their die-cast aluminum design, the models R07, R17 and R27 are three particularly efficient lightweights – ideal as satellite drives and for use in light machine constructions. Reduced backlash helical gear units are also available for particularly precise requirements.

Gear unit reduction ratio[i]：3.21 - 289.74

Multi-stage gear unit reduction ratio[i]：90 - 27001

Output torque[Nm]([in-lb])：50 - 18000 (440 to 159300)

Motor power range[kW] ([hp])：0.12 - 90 (0.16 to 120)

SEW電機R系列優勢

-高扭矩密度

-使用壽命長

-R37 ... R167減少后沖選項

The advantages of SEW R series

High torque density

Long service life

R37 ... R167 Reduced backlash option

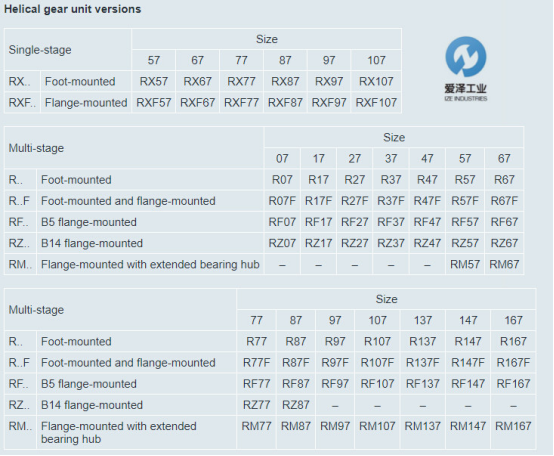

SEW斜齒輪減速機版本及尺寸 / SEW Helical gear unit versions

愛澤工業(IZE INDUSTRIES)特價經銷、常用備件SEW電機R系列列表：

SEW電機R07

SEW電機R17

SEW電機R27

SEW電機R37

SEW電機R47

SEW電機R57

SEW電機R67

SEW電機R07F

SEW電機R17F

SEW電機R27F

SEW電機R37F

SEW電機R107

SEW電機R137

SEW電機R147

SEW電機R167

SEW電機R77F

SEW電機R87F

SEW電機R97F

SEW電機R107F

SEW電機R137F

SEW電機RX系列（單級）

對于高輸出速度，專用的單級齒輪箱RX57至RX107為您的系統設計提供緊湊的解決方案。

減速比減速比[i]：1.30 - 8.65

輸出扭矩[Nm]（[in-lb]）：69-830（610 - 7340）

電機功率范圍[kW]（[Hp]）：0.12-45（0.16 to 60）

SEW RX series (single-stage)

For high output speeds, the exclusively single-stage gear units RX57 to RX107 offer compact solutions for your system design.

Gear unit reduction ratio[i]:1.30 - 8.65

Output torque[Nm] ([in-lb]):69 - 830 (610 - 7340)

Motor power range[kW] ([Hp]):0.12 - 45 (0.16 to 60)

SEW電機RM系列

帶延長輸出軸承輪轂的RM減速電機是一種特殊類型的斜齒輪減速電機。它們專為攪拌應用而設計，可承受高懸臂和軸向載荷以及彎矩。其余數據對應于標準螺旋減速電機的數據。

減速比減速比[i]：4.29至289.74

多級齒輪箱減速比[i]：134至27001

輸出扭矩[Nm]（[in-lb]）:270至18000（2380至159300）

電機功率范圍[kW]（[hp]）:0.12至160（0.16至215）

SEW RM series

RM gearmotors with extended output bearing hub are a special type of helical gearmotor. They were designed especially for agitating applications and allow for high overhung and axial loads and bending moments. The remaining data corresponds to that of standard helical gearmotors.

Gear unit reduction ratio[i]:4.29 to 289.74

Multi-stage gear unit reduction ratio[i]:134 to 27001

Output torque[Nm] ([in-lb]):270 to 18000 (2380 to 159300)

Motor power range[kW] ([hp]):0.12 to 160 (0.16 to 215)

SEW電機RF系列

RF電機與P行星齒輪箱輸出級、KF/K或RF主減速器組合成行星減速機，主減速器安裝部件有電機，聯軸器，適配器和逆止器

行星齒輪箱系列包括11種尺寸，額定扭矩為24,830 Nm 500,000 Nm。

與螺旋和斜齒輪-斜齒輪單元相比，對多個行星輪的載荷分布導致顯著更高的功率密度并因此具有更小的尺寸。

Introduction to SEW Motor RF Series

Planetary gearmotors are a combination of P.. planetary gear unit output stage

KF.., / K.. or RF. primary gear unit Mount-on components: motor, coupling, adapter and backstop

The planetary gear unit series comprises 11 sizes with a nominal torque from 24,830 Nm 500,000 Nm.

The load distribution to several planet wheels results in a significantly higher power density and consequently in smaller dimensions compared to helical and bevel-helical gear units.

設計特點

行星齒輪箱

可以傳遞高扭矩

非常緊湊

提供高度的抗扭剛度

Design features

Planetary gear units

Can transmit a high torque

Are very compact

Offer a high degree of torsional rigidity

主減速電機

在輸入端提供大的差異

它們的減速比是可變的

可與螺旋或斜面設計的行星齒輪裝置組合使用

Primary gearmotors

Offer a large variance on the input side

Are variable in their reduction gear ratio

Can be combined with the planetary gear unit in helical or bevel designs

應用領域

行星減速電機主要用于需要低輸出速度和高扭矩的應用。

例如：

?用于建筑材料行業的干燥過程

?用于水泥工業的灌裝工藝

?對于慢速運行的材料處理系統，例如，攪拌機，旋轉過濾器

?適用于具有類似要求的所有行業分支

?食品行業

Application areas

Planetary gearmotors are mainly used in applications where low output speeds and high torques are required.

For example:

?For drying processes in the construction materials industry

?For filling processes in the cement industry

?For slow-running material processing systems, e.g. mixers, rotary filters

?For all branches of industry with similar requirements

?In the food industry

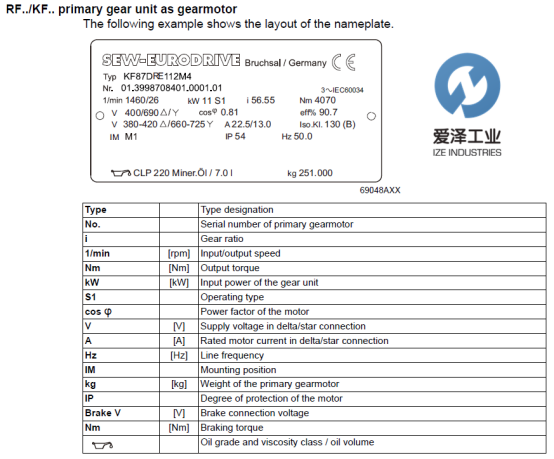

SEW電機RF系列技術資料/SEW RF series motor technical information

愛澤工業(IZE INDUSTRIES)特價經銷、常用備件SEW電機RF系列列表：

SEW電機RF07

SEW電機R07F

SEW電機RF17

SEW電機RF27

SEW電機RF37

SEW電機RF47

SEW電機RF57

SEW電機RF67

SEW電機RF77

SEW電機RF87

SEW電機RF97

SEW電機RF107

SEW電機RF137

SEW電機RF147

SEW電機RF167

以上為本月部分到貨SEW電機相關產品，愛澤工業專業提供SEW全系列產品。

如果您有任何關于產品的相關技術咨詢或者需要產品的相關技術資料與文檔，請隨時聯系愛澤工業（86-21-3100 6702），或者訪問網站www.dljtgw.com,我們將盡全力解決您的問題。

If you have any question for SEW motors, please feel free to dial 0086-21-3100 6702 or browse our website: www.dljtgw.com.
