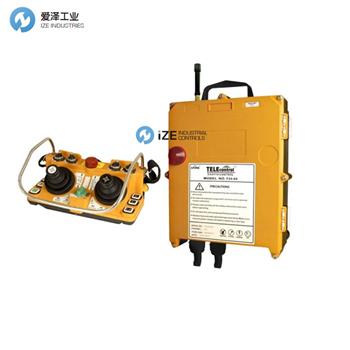

TELECONTROL天車遙控裝置F24-60技術資料
產品功能
最多40個控制觸點;通用型按鈕;
2個五步操縱桿，機械壽命1000萬次，純比例;
通過計算機界面編程按鈕功能;
6個按鈕，4個三位或兩位旋轉開關，停止，啟動，備用按鈕;
使用電池電壓警告裝置，在低功率時切斷電源;
產品描述
F24-60參數：
控制距離：約300米;
材質：玻璃纖維PA;
頻率范圍：VHF：310~331MHz;
UHF：425?446MHz;
發射功率：≤10dBm;
發射器電源：2AA電池;
獨特代碼：超過4.3billon唯一ID代碼;
工作溫度：-40°C- + 85°C;
變送器規格：
尺寸：210 * 152 * 128mm;
重量：980克;
接收器規格：
尺寸：320 * 253 * 107mm;
重量：2020g;
標準配置：
一個帶腰帶的發射器;
電池座（不含電池）;
一個接收器;
一根2.5米電纜連接接收器;
一個操作和維護手冊。
Product features
Up to 40 control contacts;Universal type button;
2 five-step joysticks with 10 million times of mechanical life and pure proportion;
Program the button function by computer interface;
6 buttons, 4 three-position or two-position rotating switch, stop, start, spare button;
With battery voltage warning device, the power supply is cut off during low power;
Product description
F24-60 Parameters:
Control distance: Approx 300m;
Material: Glass-Fiber PA;
Frequency range: VHF:310~331MHz;
UHF:425~446MHz;
Transmitter power: ≤10dBm;
Transmitter power supply: 2AA batteries;
Unique code: Over 4.3billon unique ID codes;
Working temperature: -40°C-+85°C;
Transmitter specifications:
Dimensions: 210*152*128mm;
Weight: 980g;
Receiver specifications:
Dimensions: 320*253*107mm;
Weight: 2020g;
Standard configuration:
One transmitter with waist belt;
battery holder(exclude battery);
One receiver;
One 2.5m cable connect with receiver;
One operation and maintain manual.
TELECONTROL天車遙控裝置F24-60特點
6個按鈕，4個三位或兩位旋轉開關，停止，啟動，備用按鈕;
2個五步操縱桿，機械壽命1000萬次，純比例;
最多40個控制觸點;
使用電池電壓警告裝置，在低功率時切斷電源;
安全開關鑰匙是為了防止未經授權的用戶;
通過計算機界面編程按鈕功能;
啟動鍵可編程為啟動，撥動開關，正?；蚱渌δ?
備用按鈕可編程為啟動，切換，互鎖或正常等;
安裝有比例模塊，用于模擬信號輸出（可選）;
安全特性：F24-60'強大的安全設計，超過43億個獨特的安全代碼，故障自診斷和頻率自動鎖定跟蹤等，是全球領先的產品。即使沒有按鍵，STOP按鈕也能正常工作。當開關/操縱桿/繼電器出現故障時，自動停止并無法啟動。
Products Features:
6 buttons, 4 three-position or two-position rotating switch, stop, start, spare button;
2 five-step joysticks with 10 million times of mechanical life and pure proportion;
Up to 40 control contacts;
With battery voltage warning device, the power supply is cut off during low power;
Safety switch key is to prevent from unauthorized user;
Program the button function by computer interface;
Start key can be programmed to start, toggle switch, normal or other functions;
The spare buttons can be programmed to start, toggle, interlock or normal,ect;
Installed with proportional module for analog signal output (optional);
Safety features: F24-60’ strong safety design, more than 4.3 billion unique safety code,failures self-diagnosis, and frequency automatic locking tracking, etc, are the leading global origination. STOP button works even without keys.Automatically stop and unable to start when switch/ joysticks/ relays are with faults.
